- Wide operating range of up to 600VAC
- Coil voltage range of 24 VAC, 120 VAC, or 208/240 VAC
- Maximum amperage rating of 40 Amps
- Available in screw and lug terminals
- Feature an enclosed coil with Class B 266°F (130°C) insulation
- Endurance test of 250,000 cycles – UL60947-4-1
- Industry standard dimensions
- Compliant to ARI-780 HVAC standards

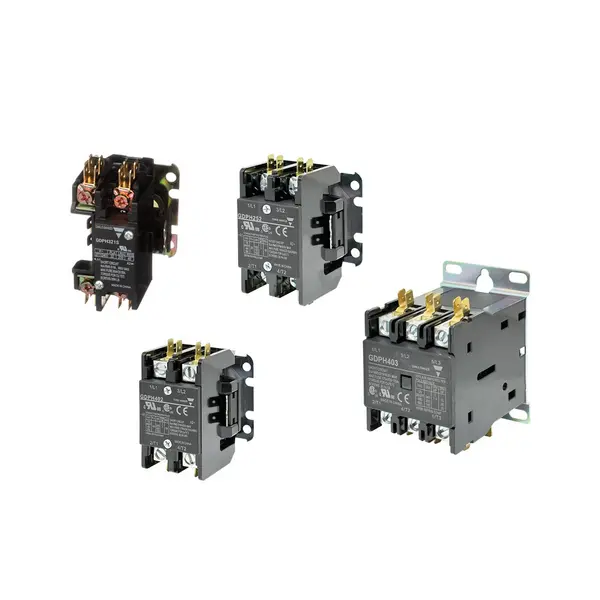

The GDPH Series consists of a 1-pole, 2-pole, and 3-pole options, with maximum amperage ratings of 25 Amps, 32 Amps, or 40 Amps, offering flexibility for a wide range of applications in HVAC-R industry.
The high quality and reliability of the GDPH Series are confirmed by a series of industry certifications and standards, including CE, UL60947-4-1, UL/CSA 60335, and ARI-780.
Designed for applications requiring cost-effective, high-cycle switching and compatibility with flammable refrigerants, the GDPH Series Definite Purpose Contactors are an ideal choice for HVAC and refrigeration systems.
The products are available through Carlo Gavazzi’s network of sales offices and distributors in the Americas.
For further information:
Carlo Gavazzi Inc. - 750 Hastings Lane, Buffalo Grove, IL - sales@carlogavazzi.com - www.GavazziAutomation.com
