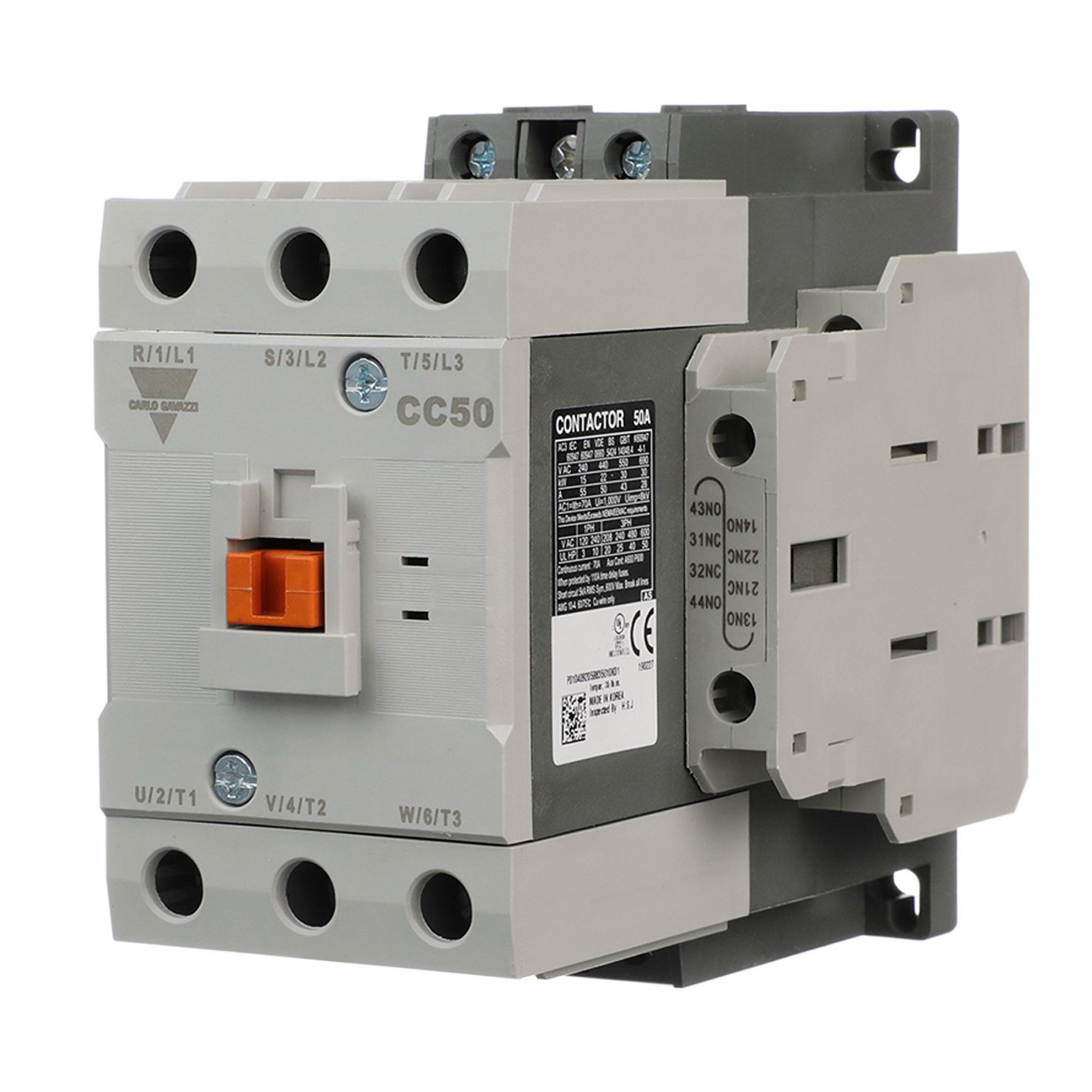

CC50LA24
IEC Magnetic Contactor: Non-Reversing, 3 Poles, 50 A, Coil: 24 VAC 50/60 Hz, Auxiliary Contacts: 2 Normally Open (NO), 2 Normally Closed (NC)Specifications
Coil voltage
24 VAC
HP rating at 480 VAC
40
HP rating at 600 VAC
50
Number of normally open (NO) contacts
2
Number of normally closed (NC) contacts
2
Number of poles
3
Downloads
Data sheet
Images
Related accessories
GUA1
Side Mount Auxiliary Contact, 1 Normally Open (NO) , 1 Normally Closed (NC) Contacts - Compatible with models CC9 to CC85
GUA2-02
Front Mount Auxiliary Contact, 2 Normally Closed (NC) Contacts - Compatible with models CC9 to CC85
GUA2-11
Front Mount Auxiliary Contact, 1 Normally Open (NO), 1 Normally Closed (NC) Contacts - Compatible with models CC9 to CC85
GUA2-20
Front Mount Auxiliary Contact, 2 Normally Open (NO) Contacts - Compatible with models CC9 to CC85
GUA4-04
Front Mount Auxiliary Contact, 4 Normally Closed (NC) Contacts - Compatible with models CC9 to CC85
GUA4-13
Front Mount Auxiliary Contact, 1 Normally Closed (NO), 3 Normally Closed (NC) Contacts - Compatible with models CC9 to CC85
GUA4-22
Front Mount Auxiliary Contact, 2 Normally Closed (NO), 2 Normally Closed (NC) Contacts - Compatible with models CC9 to CC85
GUA4-31
Front Mount Auxiliary Contact, 3 Normally Closed (NO), 1 Normally Closed (NC) Contacts - Compatible with models CC9 to CC85
GUA4-40
Front Mount Auxiliary Contact, 4 Normally Closed (NO) Contacts - Compatible with models CC9 to CC85
GUR02
Side Mount Mechanical Interlock, 2 Normally Closed (NC) Contacts for CC Series (CC9 to CC150)
GUS1
Top Mount Surge Unit (MOV/Varistor) for CC IEC Contactors with Coil voltage: 24 - 48 VAC
GUS11
Top Mount Surge Unit (MOV/Varistor) for CC IEC Contactors with Coil voltage: 24 - 48 VAC/VDC
GDA63A
Direct Adapter Bridge for CC Series (CC50 to CC65) IEC Contactors (AC Coil Models) to GMS63 Manual Motor Starter (MMS)
GUW63
Busbar Links (Reversing Kit) for CC Series of IEC Contactors : CC50 to CC65
GT63LS50A
Bi-metal Overload Relay, Trip Class 20, Adjustable range: 34 - 50A, Screw terminals
